低成本 高效率

Cost Effectively And With Quick Access

垂直升降式倉儲系統 Shuttle XP 是為滿足制造業、零售和多種行業廣泛的存取應用而設計開發的。集緊湊、靈活、高效、安全為一體的存儲特性，使得 Shuttle XP 成為獨一無二的倉儲解決方案。

The Shuttle XP vertical lift system has been designed to meet a broad range of storage and retrieval applications in manufacturing,distribution, retail and warehouse operations. The combination of optimal storage density, flexible, efficient storage strategies, ergonomics and security makes the Shuttle XP from Kardex Remstar a unique storage solution.

工作原理   The principle

模塊化垂直升降式倉儲系統 Shuttle XP 是一種封閉式系統，托盤在設備兩側垂直裝入。中間有提取器，按按鈕或讀取條形碼可以將存放倉儲貨物的托盤自動輸送至揀貨口。模塊化設計使得Shuttle XP 可以適用于不同的高度需求，并且存取口的數量也是可變的。由于能有效利用高度空間，相比傳統系統至少節約85%的占地面積。借助Optiflex 技術可以自動測得托盤上物料的高度，待托盤進入后自動以25毫米的間距分配到理想的倉儲位置。

The modular Shuttle XP vertical lift is an enclosed system of vertically arranged trays that are stored in the front and rear of the unit. There is an extractor device located in the center, which automatically delivers trays with the stored items to the access opening at the push of a button or the scan of a bar code. The device is modular in its construction with the ability to change its height and number of access opening spre and post construction. Depending on the ceiling height, at least 85% of a conventional storage system?s occupied floor space can be recovered. The Shuttle XP automatically scans every tray with the use of Cubestar technology, finding the ideal storage location within the system in increments of one inch (25 mm). Items are stored in the least possible amount of space.

靈活、高效的倉儲策略

Flexible efficient storage strategy

Shuttle XP 的模塊化結構確保了可以充分利用各種高度的空間。設備高度以100mm為基數遞增，因此 Shuttle XP總是能夠適應具體的體積和高度要求。即使在變更地點或者搬遷的情況下，通過添加或者去掉一些模塊，它也可以很快適應新的要求。

The modular design of the Shuttle XP ensures almost unlimited flexibility in the utilization of various ceiling heights. The Shuttle XP’s height increases in 3.9 inch (100 mm) steps, making it an extremely versatile solution. If you relocate, the system can relocate with you and be adapted to your new requirements by adding or removing modules.

適應建筑物情況

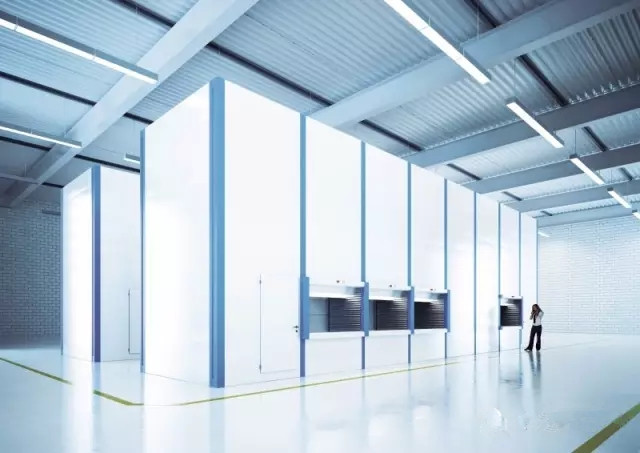

Adapting to the building situation

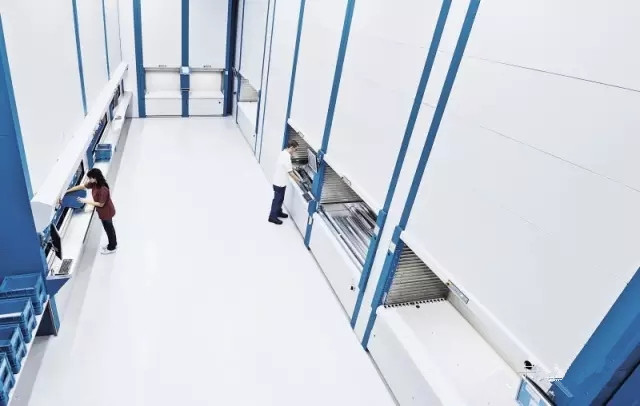

在多層建筑中投入使用時，可以在Shuttle XP 前后的任意位置設置存取口，并且將來這些存取口可以按照新的需要進行更改。每個存取口內側的自動門可以阻止氣流泄露并確保操作員和倉儲貨物的安全。

When installed through several floors, up to 6 access openings can be integrated at any point on the front or rear of the Shuttle XP. They can even be changed at a later date. The shutter door in every access opening prevents draughts and protects the operators and stored goods.

Kardex Remstar Shuttle XP: 選擇 Shuttle XP 的八大理由

Kardex Remstar Shuttle XP: Eight reasons to choose the Kardex Remstar ShuttleXP

 1   優點：節省空間 / 利用高度

         Benefit: Saving floor space

通過以25毫米為單位間距的緊密存儲，可節約最多85% 的存放面積。

With heights to meet your exactr equirements, the Shuttle XP utilizes overhead space to reclaim up to 85% of otherwise wasted space.

 2   優點：降低人員成本

         Benefit: Reduced labor costs

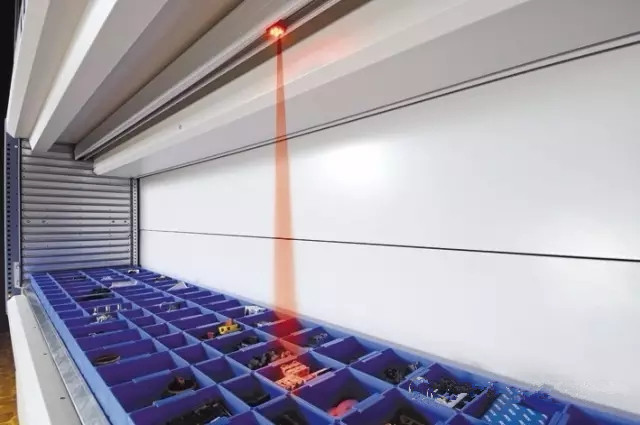

所需物料自動傳輸給操作員，這樣可極大的節約非生產性運行時間和搜索時間?？蛇x的Pick-to-Light 系統(LED) 清晰的顯示倉儲層和待提取數量，極大的提高揀選效率。

Items are automatically delivered to the operator, eliminating wasted walk and search time. The optionally integrated pick-to-light system immediately identifies the item and quantity to be picked, increasing productivity.

 3  優點：人體工程學設計

        Benefit: Ergonomics

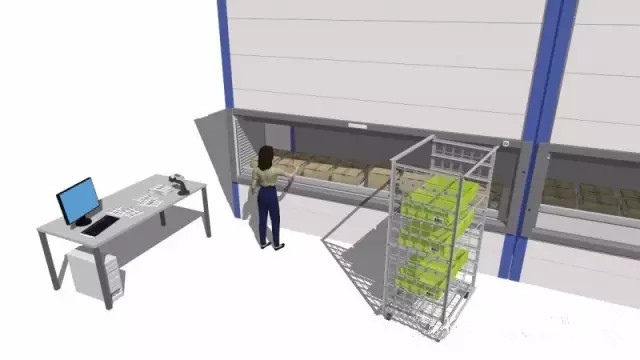

操作員存取貨物時不必攀爬、彎腰和伸展，因?yàn)镾huttle XP 按照“貨物到人”的原理工作：所需零件自動送到人體工程學設計的存取口，并且托盤可以調節到工作臺的各種高度。

The Shuttle XP works on a good-to-person principle, delivering items automatically to an ergonomically positioned access opening, eliminating bending, reaching and climbing to retrieve items. Trays can also be delivered to each user's specific working height and connection to conveyors and lifting devices is also possible.

 4  優點：更高的安全性

        Benefit: Security & Safety

托盤的權限管理和追溯功能保證了物料的安全。內置自動門保護操作人員和倉儲貨物，同時噪音排放得到明顯的降低。

Controlled access to specific trays , or tracking user access is not a problem with the Shuttle XP. Shutter doors provide increased safety and security for operators and stored items.

 5   優點：精準

        Benefit: Accuracy

智能 Pick-to-Light 系統、條形碼讀取器和軟件接口保證高度精準。輸送系統、機械手臂或起重設備的相互配合保證舒適的工作環境。

Integrated pick-to-light devices, barcode scanning and software interfaces provide the highest levels of accuracy possible.Connection to conveyors, robotic arms or lifting devices for maximum workcomfort is also possible.

 6   優點：靈活

        Benefit: Flexibility

可根據操作規程對每個托盤進行編程。其他更多選項：對靈敏度高的貨品降低運行和存取速度；將常用貨品存儲在“黃金區”附近；為托盤設定存取權限；在同一設備中混合存儲不同載重量的托盤等。

Each tray can be programmed according to meet your needs such as: slower speeds for fragile items, positioning of fast moving trays in the “golden zone" for quick access, user access for individual trays, storage of trays with different weight capacities in one single unit, and much more.

 7   優點：模塊化

        Benefit: Modularity

由于模塊化結構，設備高度可以快速調整以適應改變后的工作地點或工作條件，并且費用低廉。

Modular design allows for heights to be changed quickly and inexpensively to meet a facilities changing workflow or inventory profile.

 8   優點：可靠

      Benefit: Reliability

垂直升降式倉儲系統 Shuttle XP 在工業領域的無障礙運行時間至今無法超越。無論是設計、制造、安裝還是服務，Shuttle XP 都將向您證明：它屬于領導行業的高端產品。

With the great installation base of verticallift systems, the Shuttle XP provides unsurpassed levels of up time in the industry. From design to manufacturing, installation and service, the Shuttle XP is one of the leading technologies in the industry.

我們向您提供的綜合解決方案可顯著提高生產率、減少占地面積和實現最佳揀選與盤點。

We provide our customers with dramatically increased levels of employee productivity, reduced floor space requirements and increased inventory visibility and management.
