快速,直接和可靠的操作，節省時間
Save time through rapid, direct and reliable access

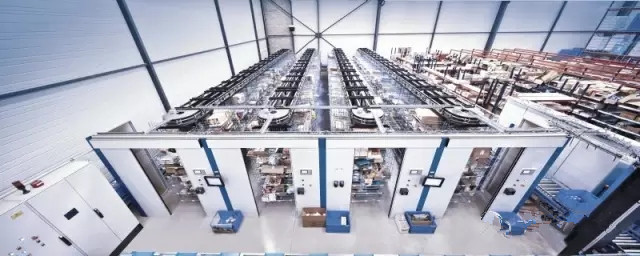

Kardex Remstar 水平回轉系統可用于任何需要快速，可靠和高效地倉儲和分揀貨物的地方。無論是在生產或分配上，對應用上要求的高出貨量或中低速的運轉:水平回轉系統都是完美的解決方案。
The Kardex Remstar Horizontal Carousel is used everywhere where fast, reliable and cost-effcient storage and picking of goods is vital. Whether in production or distribution, for applications requiring high throughput or for medium and slow-movers: Horizontal Carousels are the perfect solution.
優勢一覽
– 高分揀性能和批量分揀，無等待時間
– 通過Pick-/Put-to-light技術達到精準分揀
– 7天/24小時全天候的可用性
Benefits at a Glance:
– High picking performance and no waiting times through batch picking
– High picking accuracy through Pick- and Put-to-Light technology
– 24/7 availability
更高的性能和快速的傳送時間
For higher performance and fast delivery times
為了達到更高的分揀性能，水平回轉系統通常與揀貨站相結合。依據安裝尺寸和構想，許多不同的排列方式都可能實現:
For higher picking performance, Horizontal Carousels are usually arranged in stations. Depending on the installation size and conception, a number of different layouts are possible:

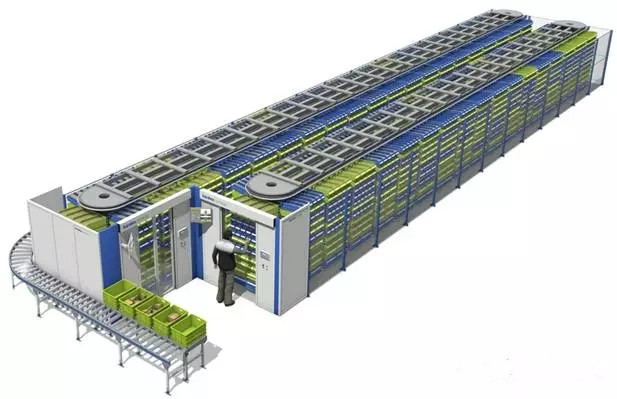

二分式揀貨站
Dual Station
L 型或 I 型（設備長度相同，并排放置）
L-shape or I-shape (all machines with same length arranged in line)

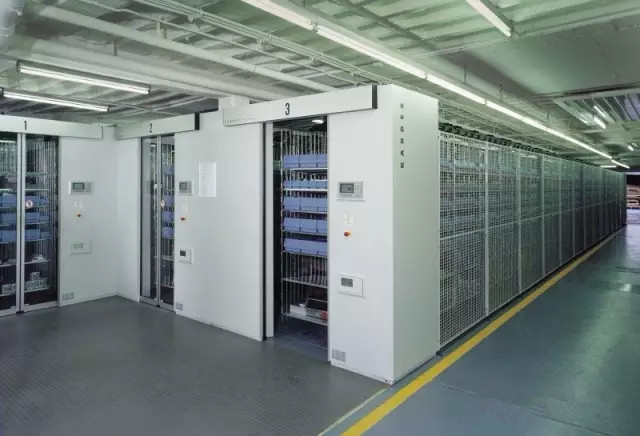

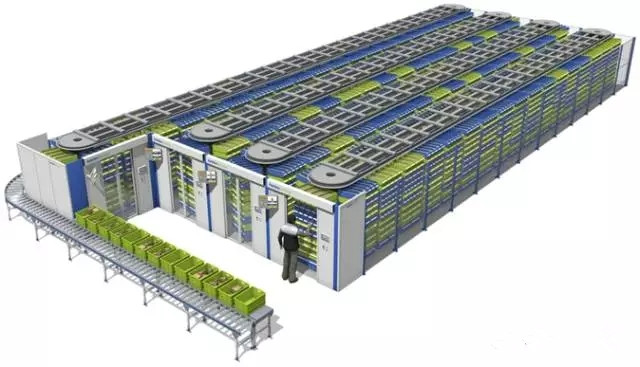

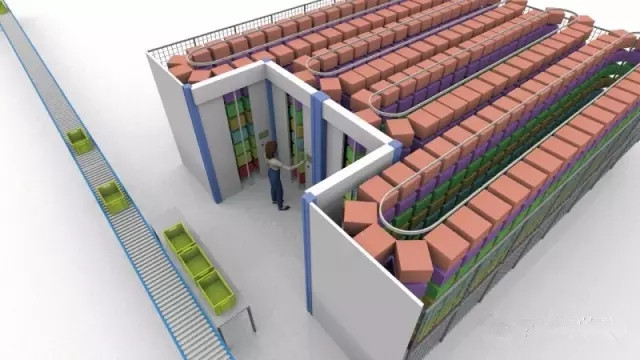

三分式和四分式揀貨站
Triple and Quadruple stations
L 型或 I 型（所有設備長度相同，并排放置）或 U 型
L-shape or I-shape (all machines with same length; arranged in line) or U-shape

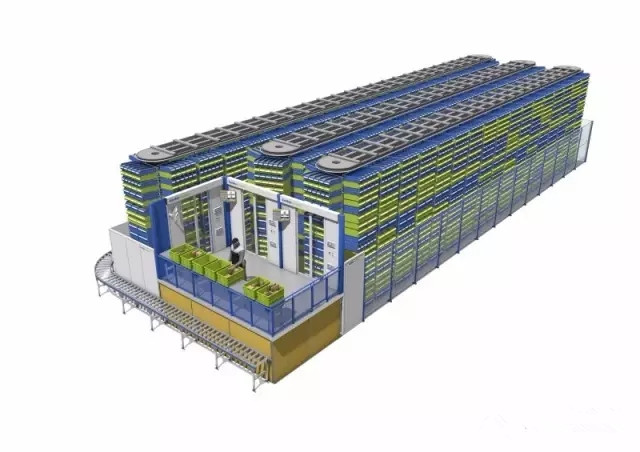

帶升降臺的高揀貨站
Tall station with lifting platform
升降臺在一個揀貨區內完成完成所有貨物的分揀之后才會移至下一個揀貨區
Lifting plat form moves to all articles in one picking zone before moving to the next one

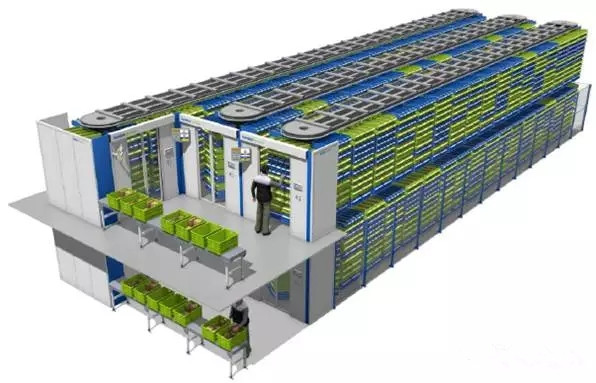

多層揀貨站
Multi-level system
可選擇性地安裝輸送技術，使物料能夠在不同樓層之間流通
Conveyor technology can optionally be installed to allow material flow between the different levels
最佳分揀性能的九大優勢
9 good reasons for optimum picking performance
Kardex Remstar 的成功準則: 優化您的生產率，提高吞吐量，減少空間需求，實現您倉庫中的更高透明度。
Kardex Remstar’s formula for success: optimising your productivity and increasing your throughput while reducing space requirements and achieving greater transparency in your warehouse.
優勢一：生產率
Benefit: Productivity

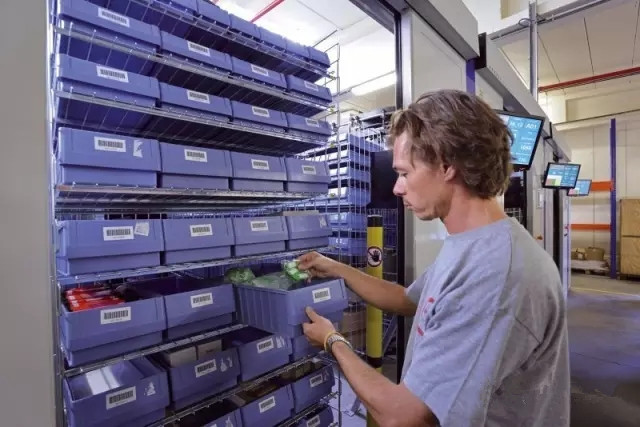

根據“貨物到人”的原則，所需的貨物被送至操作者，快速，直接和可靠，無任何多余傳送和搜尋時間。對此，水平回轉系統總是采取到達揀貨口的最短徑。工具顯示面板為操作者顯示了貨物種類及其數量和分揀位置。
With the “goods to person“ principle, the requested items are transported to the operator – fast, directly and reliably – without any unproductive travel and search times. For that, the Horizontal Carousel always takes the shortest path to the access opening. The display-tool-feature shows the operator which goods and what quantities to pick from which storage location.
優勢二：分揀性能
Benefit: Picking performance
在同時，獨立運轉的情況下，水平回轉系統要比其他所有系統更加快速，擁有更高的分揀性能。在每個揀貨站，一名操作者每小時能夠完成200到400個位置上的分揀操作。在設備上和揀貨站的光學顯示屏使得其分揀精度超過99%。
Simultaneous, independent moving Horizontal Carousels of a station allow for a very fast overall system and high pick performance. One operator can work off 200 to 400 positions per station and hour. Optical displays on the machine and on the picking station allow for apick and put accuracy of over 99%.
優勢三：批量分揀
Benefit: Batch picking

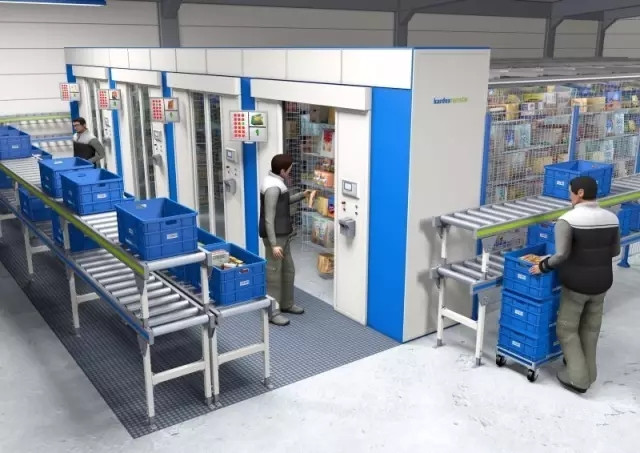

設備能夠進行無紙化分揀，同時也能夠打印傳送票據和其他相關文件。通過電腦控制，倉庫管理系統將多個訂單整合進一個分揀批次中，因此操作者能夠在減少走動的情況下分揀多個訂單。
Paperless picking is possible while delivery notes and other relevant documents can continue to be printed. The warehouse management system combines several orders into a picking batch via PC control, allowing operator to pick multiple orders with reduced movements.
優勢四：高載荷
Benefit: High payloads
水平回轉系統能夠?qū)χ行⌒拓浳镞M(jìn)行完美的倉儲和檢索。此外，它能夠倉儲最大載荷為54噸的貨物。載荷量可根據應用進行選擇。
The Horizontal is ideally for storage and retrieval of small and medium sized items. Moreover it is capable of storing items with a maximum payload of 54 tons. The load capacity is chosen according to the application.
優勢五：最佳空間利用
Benefit: Optimum space utilisation

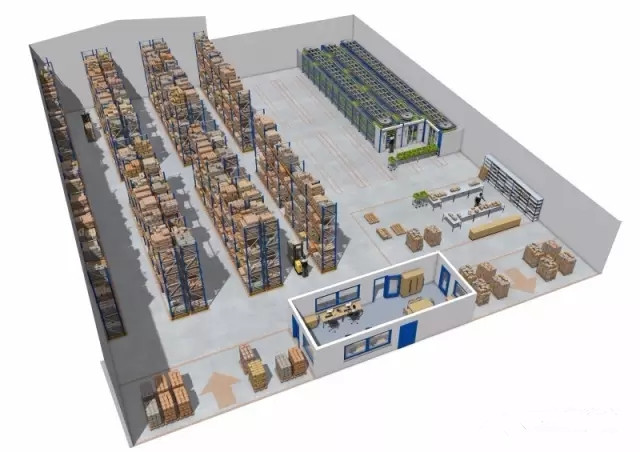

貨物被緊湊地倉儲在有限的空間內；這樣消除了在倉庫內部多余的傳送和分揀路徑。實際的分揀區域縮小到5至10平方米。
Items are stored compactly in a confined space;this eliminates unproductive travel and picking routes within the warehouse. The actual picking zone is as small as 5 to 10 square meters.
優勢六：可靠性和緊湊型設計
Benefit: Reliability and compact design
從發展，制造到對客戶的服務：水平回轉系統是緊湊，可靠，低維護成本的設備，其可用性接近100%，確保了設備的持續發展和長期的操作安全性。
From development, manufacturing to customer service: The Horizontal Carousel is a compact, reliable, low-maintenance unit with nearly 100 % availability – ensuring consistent and long term operational safety.
優勢七：可變性
Benefit: Variability
為了在高峰時期達到高生產力并滿足季節性分揀要求，在按下按鈕時系統可分出不同的揀貨站。因此，例如四臺使用一個系統的水平回轉系統不僅能夠由一人操作，而且也能夠由多人同時操作。
To achieve high throughput during peak times and meet seasonal picking requirements the system can be divided into different stations at the push of a button. Thus, it’s possible, for example, to have a system of four Horizontal Carousels operated not only by one person, but by several persons simultaneously.
優勢八：安全性
Benefit: Safety

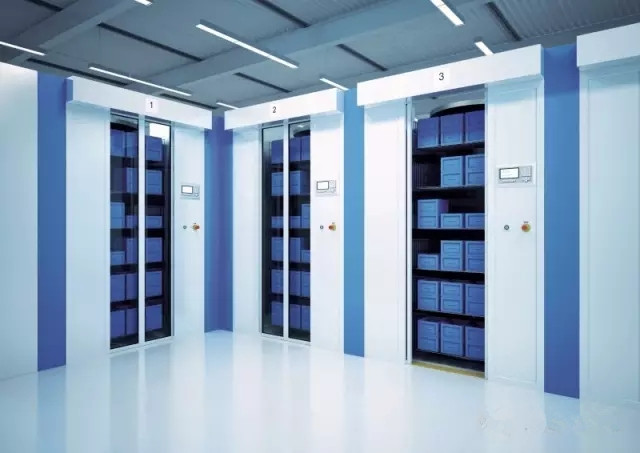

水平回轉式倉儲系統符合最高安全要求： 整臺系統四周封閉并圍有安全護欄，防止意外事故并同時避免未授權存取。此外，在設備前方的揀貨口配備有自動開閉的安全門。
The Horizontal Carousels meet the highest safety requirements: The systems are closed all around and are surrounded by a safety fence which prevents accidents and protects from unauthorized access at the same time. Further more, the access opening on the station front side is equipped with safety doors that open and close automatically.
優勢九：靈活性
Benefit:Flexibility

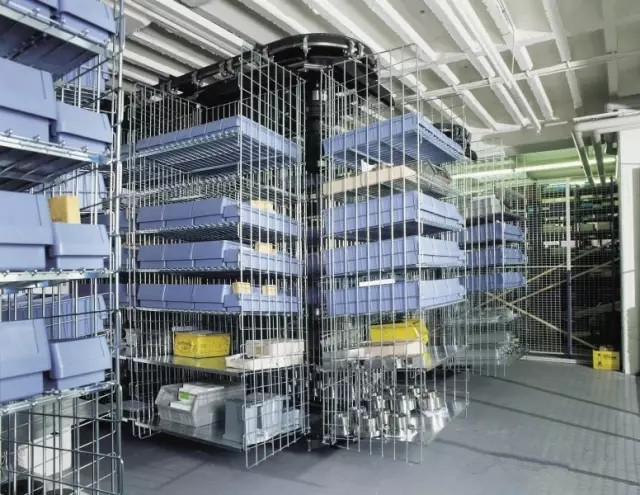

水平回轉系統是適用于各種不同的應用和貨物倉儲。在托架方面，您可以選擇特殊的貨架間距并使其適應個別貨物的倉儲。.因此，設備能夠?qū)_(dá)到整個托架的高度的大體積貨物進行高效倉儲。
The Horizontal Carousel is suitable for a variety of different applications and items to be stored. Within the carriers, you can choose individual shelf distances and adapt them to the respective goods to bestored. Thus, even the effcient storage of bulky items is possible – up to the entire carrier height.
